Monorail Transporter for Mountain & Plantation Agriculture
Product Introduction

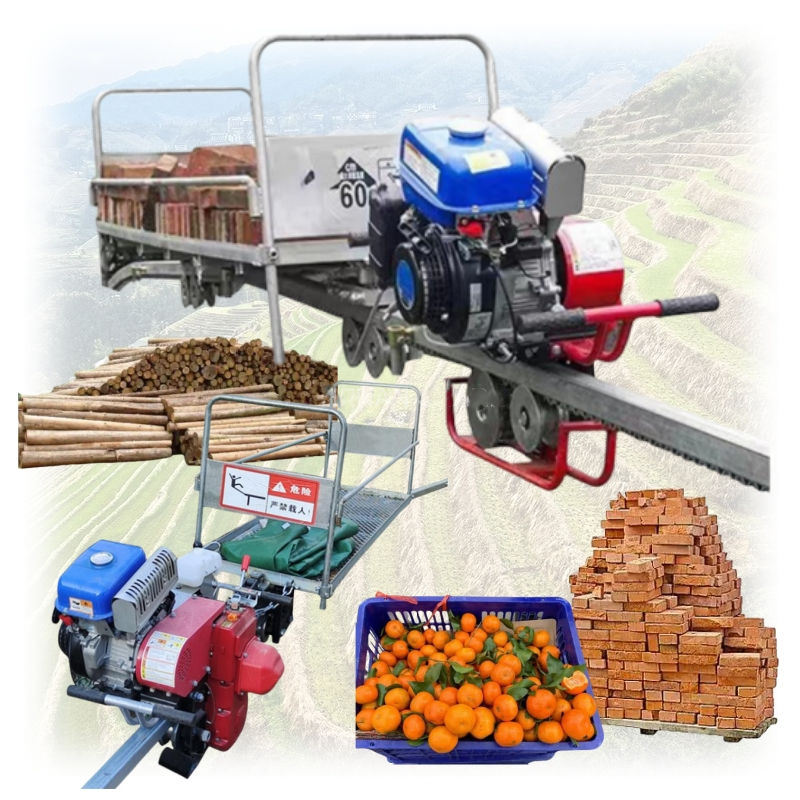

The Monorail Transporter is an advanced transportation solution specially designed for agricultural environments with complex terrain, including mountains, hills, tea plantations, orchards, coffee plantations, vineyards, and palm estates. It is developed to solve transportation difficulties in areas where conventional vehicles and machinery cannot operate efficiently due to steep slopes, narrow pathways, muddy ground, or uneven terrain.

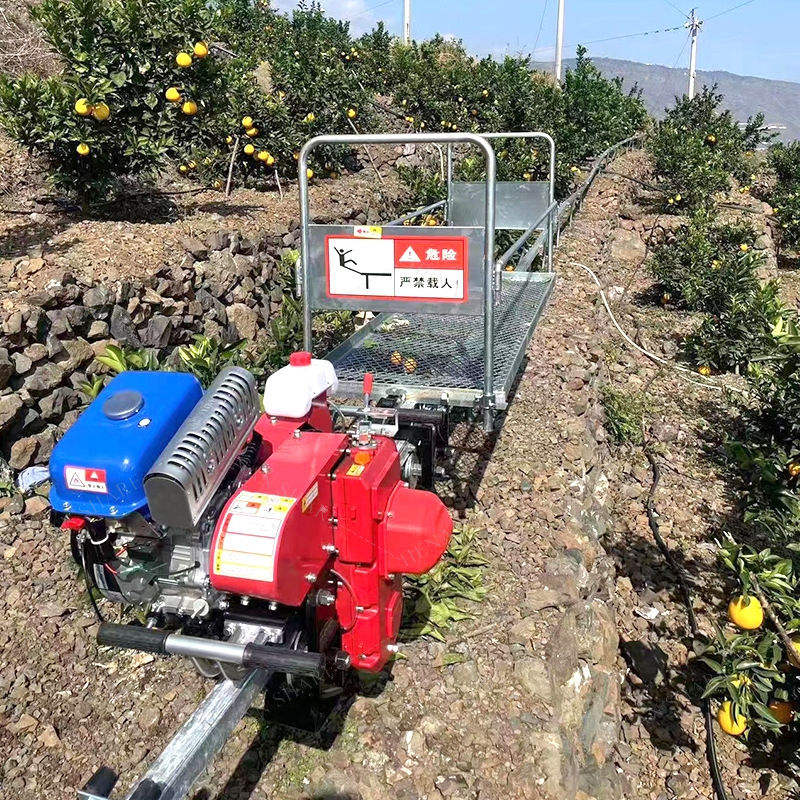

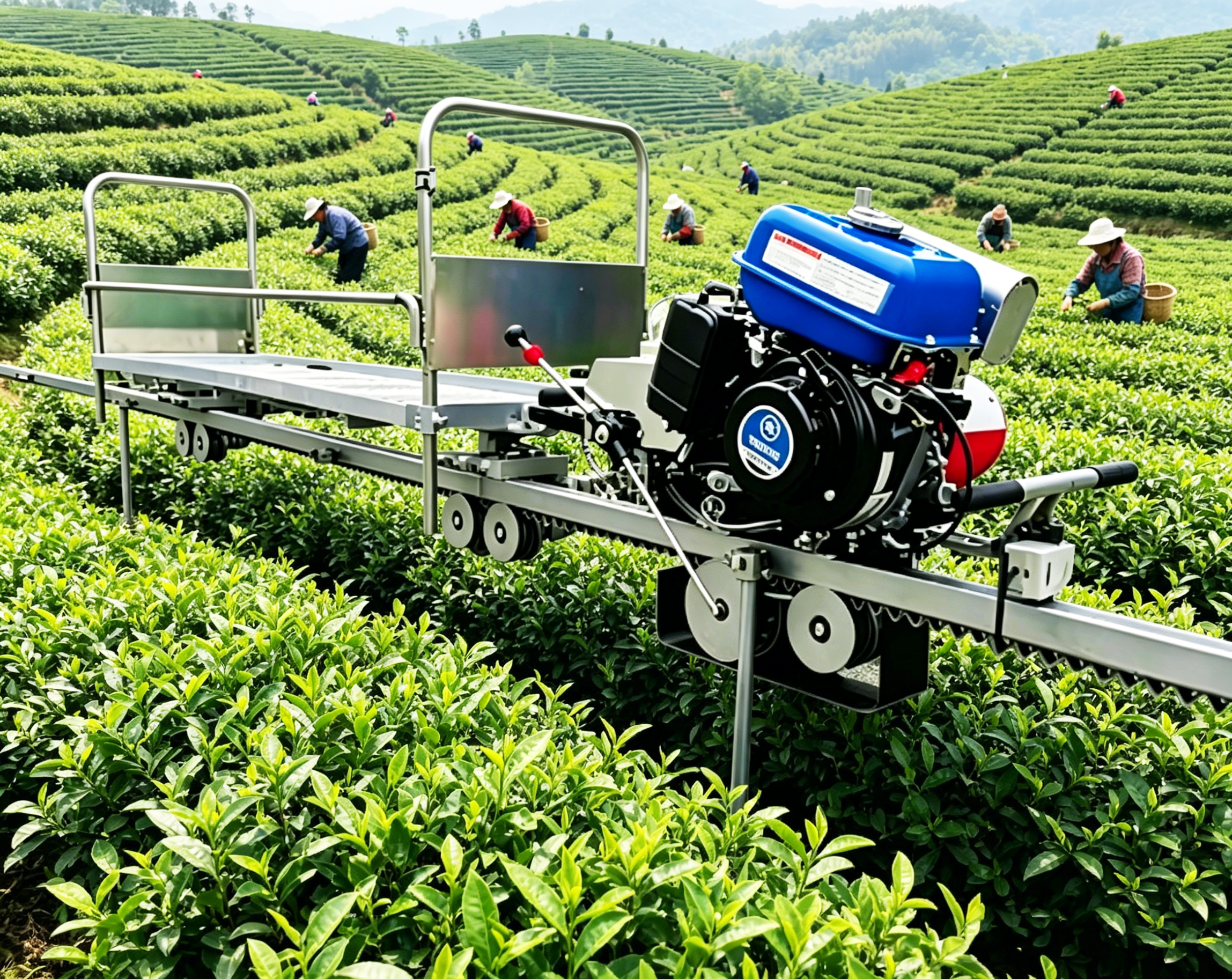

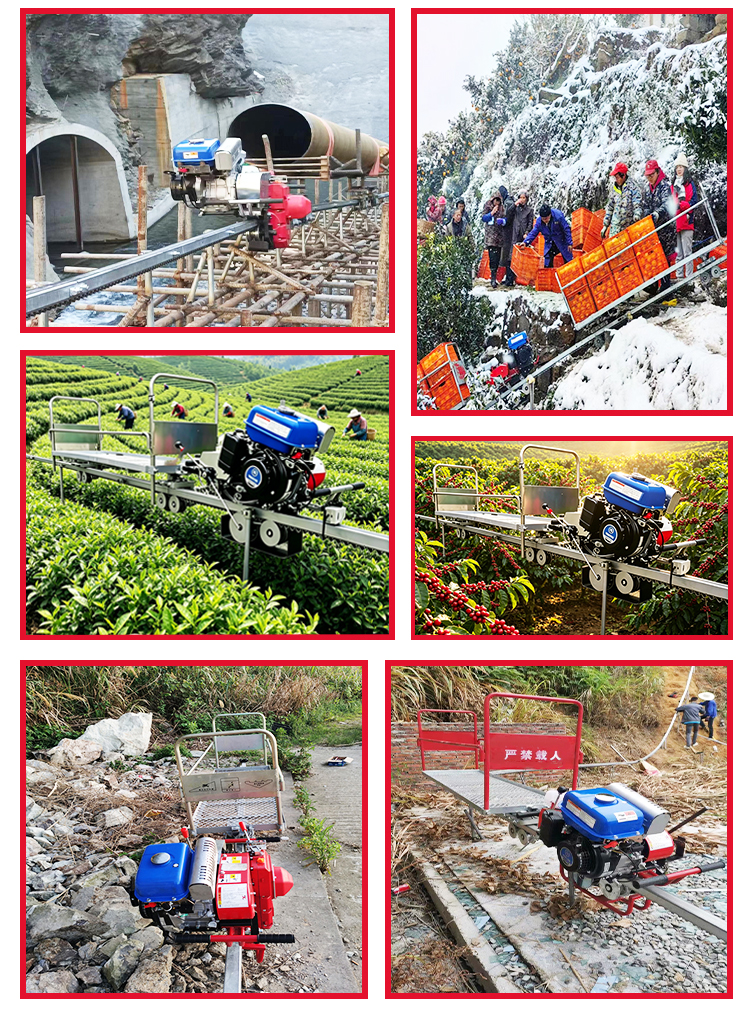

Using a rail-guided transportation system, the monorail transporter ensures stable, safe, and continuous movement of agricultural materials such as harvested crops, fertilizers, tools, seedlings, and equipment. It is widely applied in tea gardens, fruit orchards, banana plantations, durian farms, coffee estates, and mountainous agricultural areas to improve transportation efficiency while reducing manual labor intensity.
With flexible rail layouts and customizable configurations, the system can be adapted to different farm sizes, slopes, and working conditions, making it an ideal transportation solution for modern mountain agriculture and plantation management.

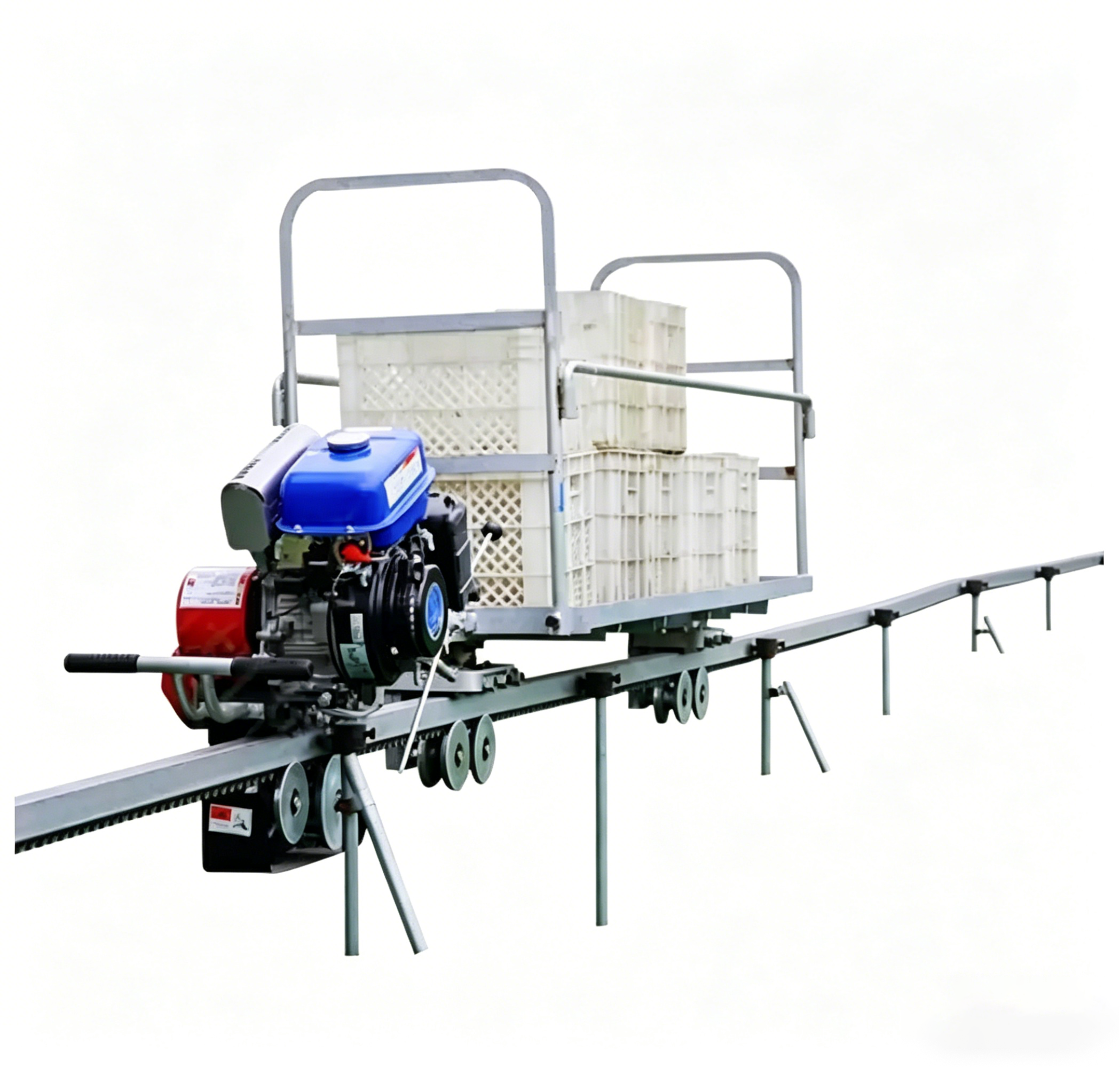

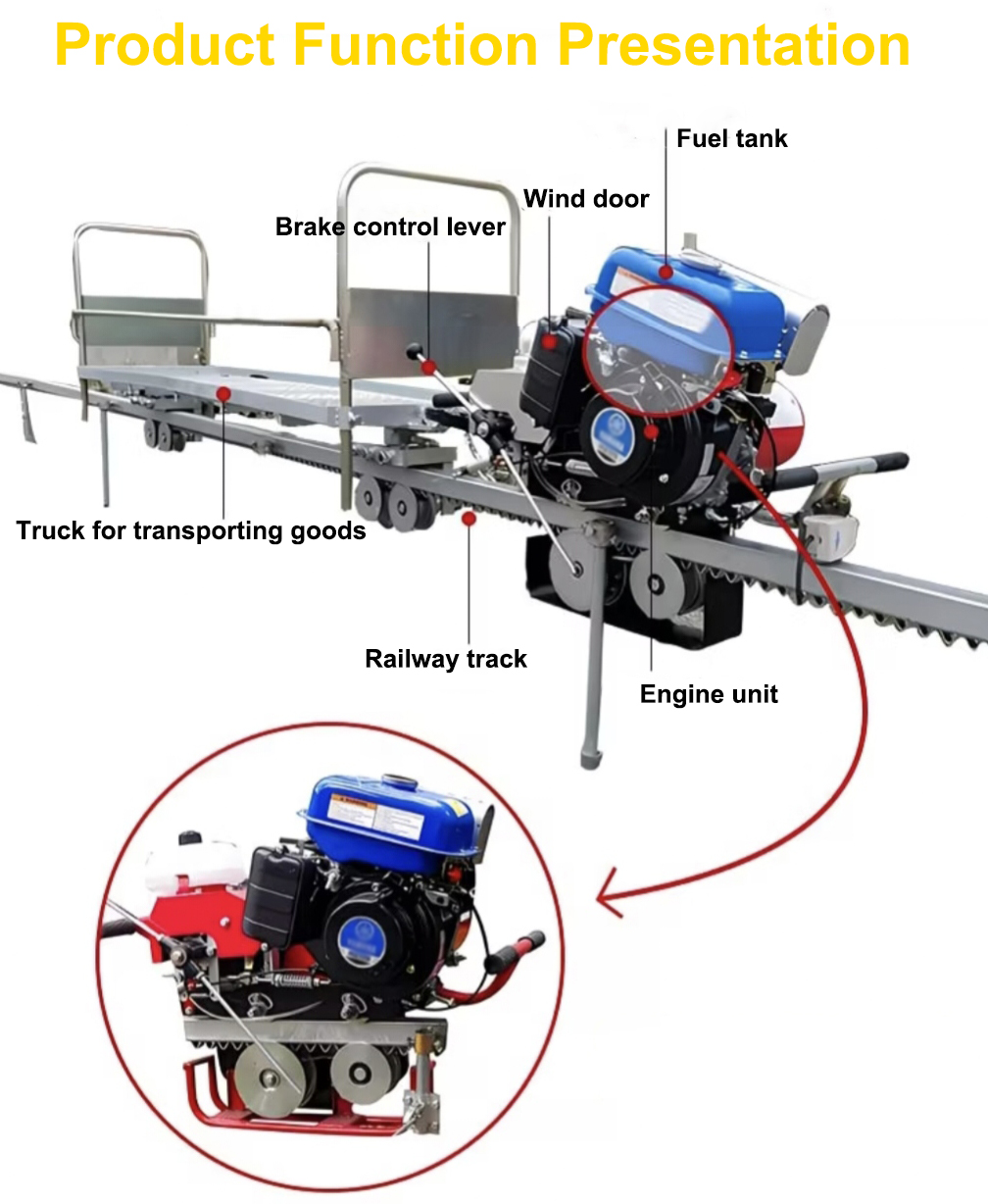

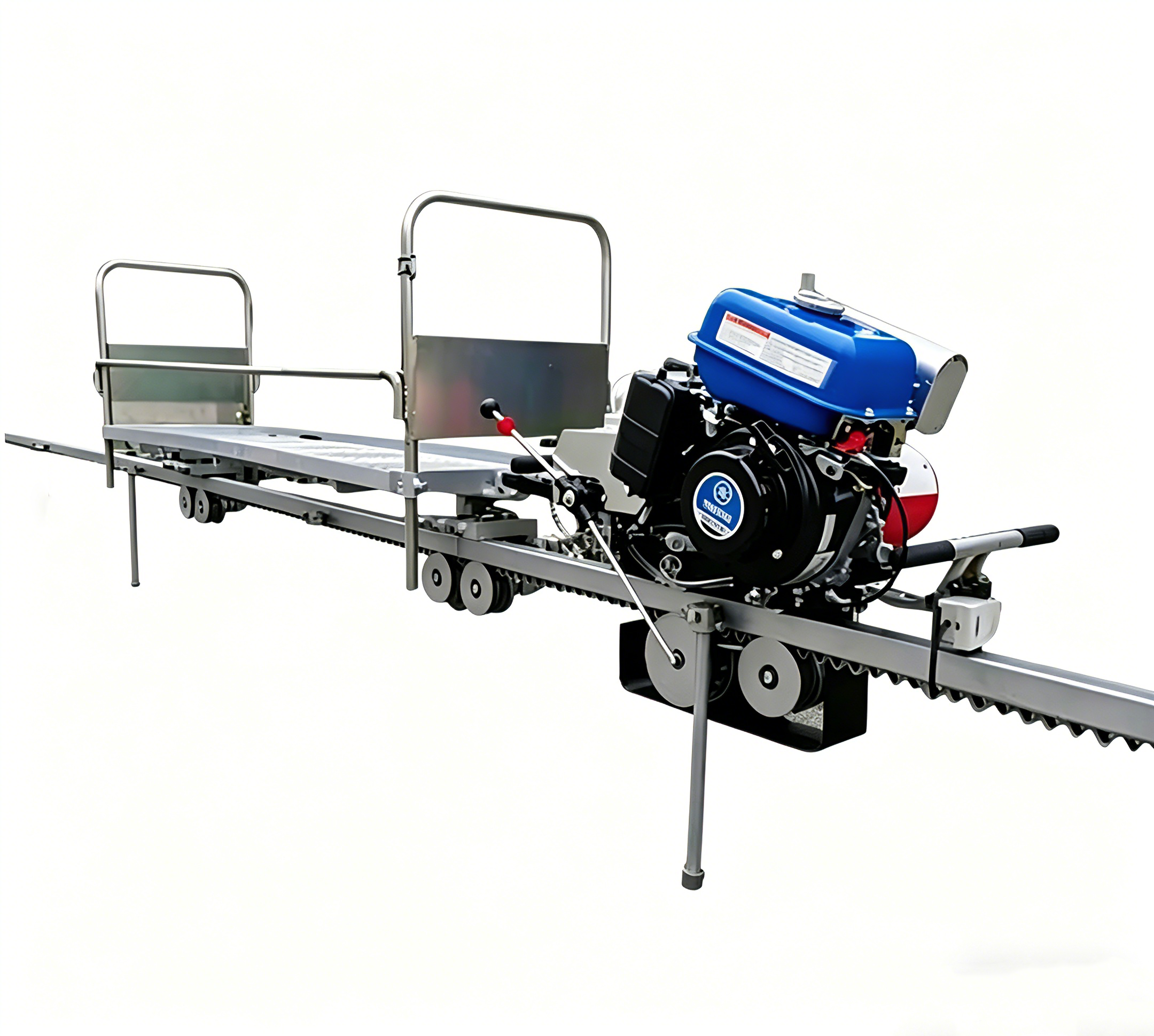

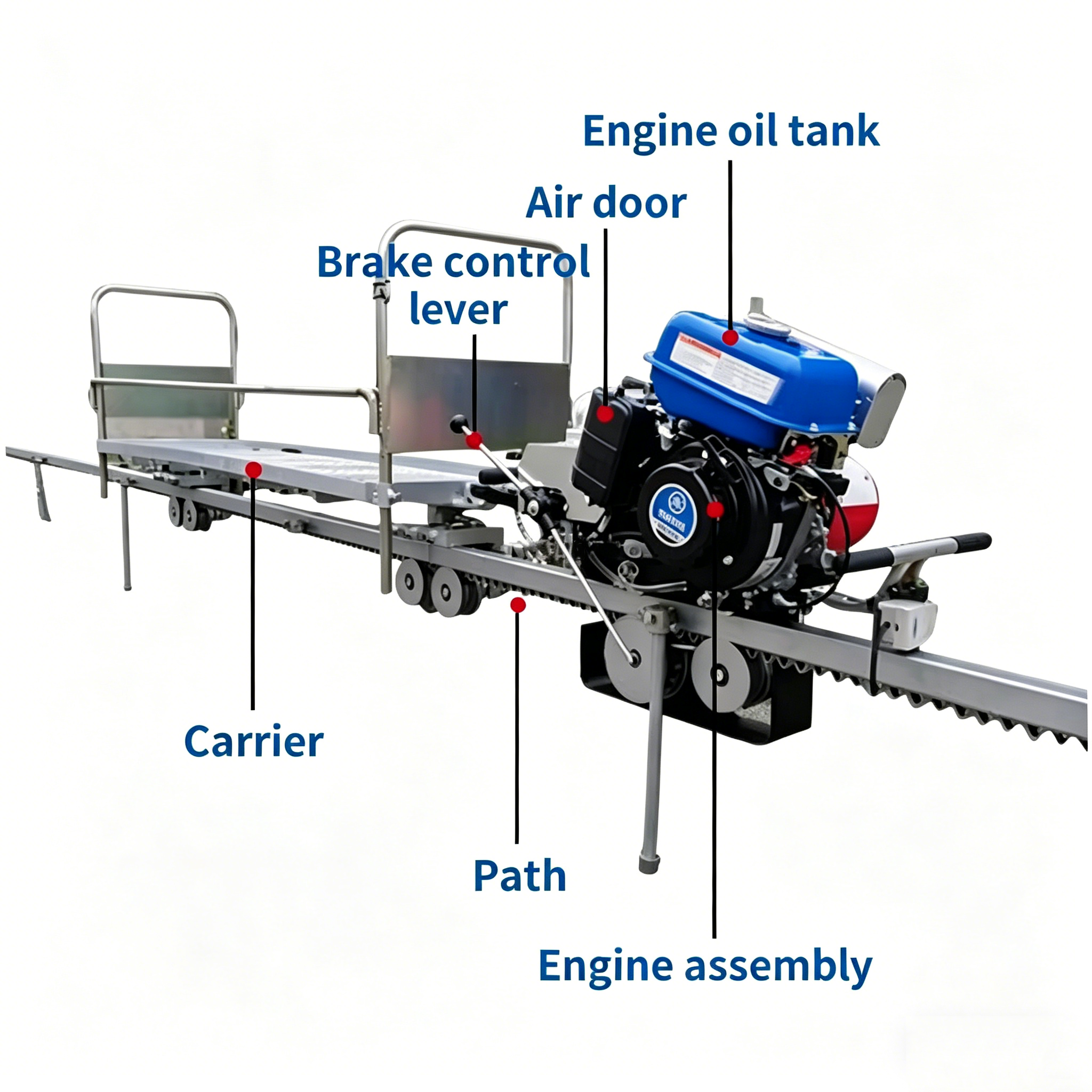

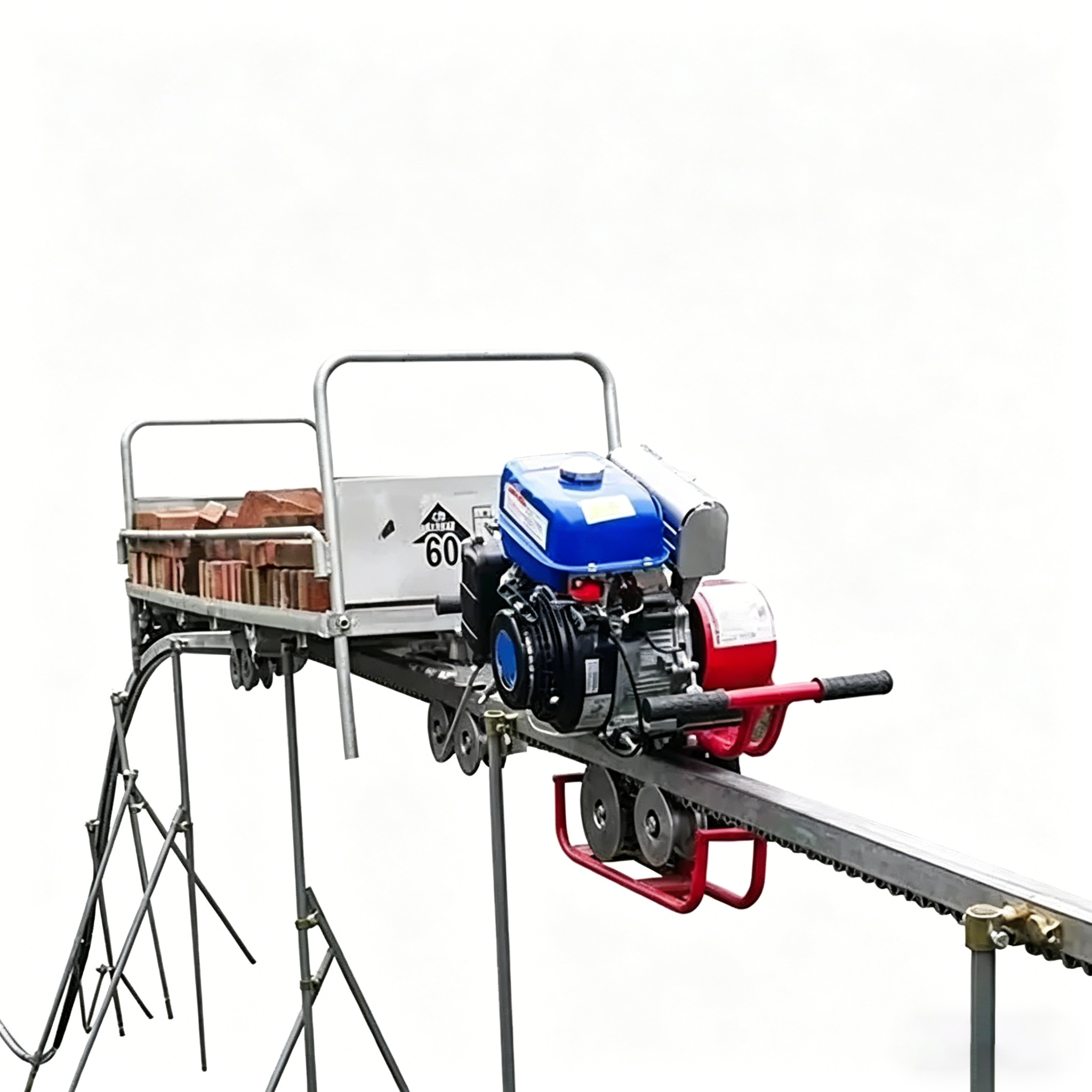

The composition and characteristics of monorail transport vehicle: the basic composition of monorail is a transport vehicle which is drawn by the tractor equipped with power machine. It rides across a light monorail road, and the track with rack structure is supported by the trapped bracket and laid on the ground. Its driving devices are mainly composed of gasoline engine, belt and chain as the main transmission way, by driving gear, clutch device, brake device, against its side rail derailment device, main frame, trailer and single track with tooth form, the current use of monorail vehicle can finish in hilly orchard spraying, fertilization and transportation and other related operations.
Product Paramenters
| Model | MT-300 / MT-500 |
| Drive type | Self-propelled gasoline engine |
| Power | 3.8kW (Customization) |
| speed | 3600r/min |
| Loading volume | 300kg / 500kg |
| Structure | monorail bidirectional |
| Dimensions of inner container | 2000*600*720mm |
| Maximum climbing capacity | 45° |
| Track form | rack type |
| Track material thickness | 2.3mm/2.5mm(Customization) |
| Track material length | Customized |
| Dimensions of inner container | 2000*560*700mm |
| Rail Material | Q235 Steel Hot-dip Galvanized |
